How To Integrate Keycloak with Chainguard

By default, the Chainguard platform supports Single sign-on (SSO) authentication for users with GitHub, GitLab, and Google.

This guide outlines how to create a Keycloak Client on your existing Keycloak instance and integrate it with Chainguard. After completing this guide, you’ll be able to log in to Chainguard using Keycloak and will no longer be limited to the default SSO options.

Prerequisites

To complete this guide, you will need the following:

• chainctl installed on your system. Follow our guide on How To Install chainctl if you don’t already have this installed.
• An existing Keycloak instance with admin access to the realm you will be using to authenticate.

Create a Keycloak Client

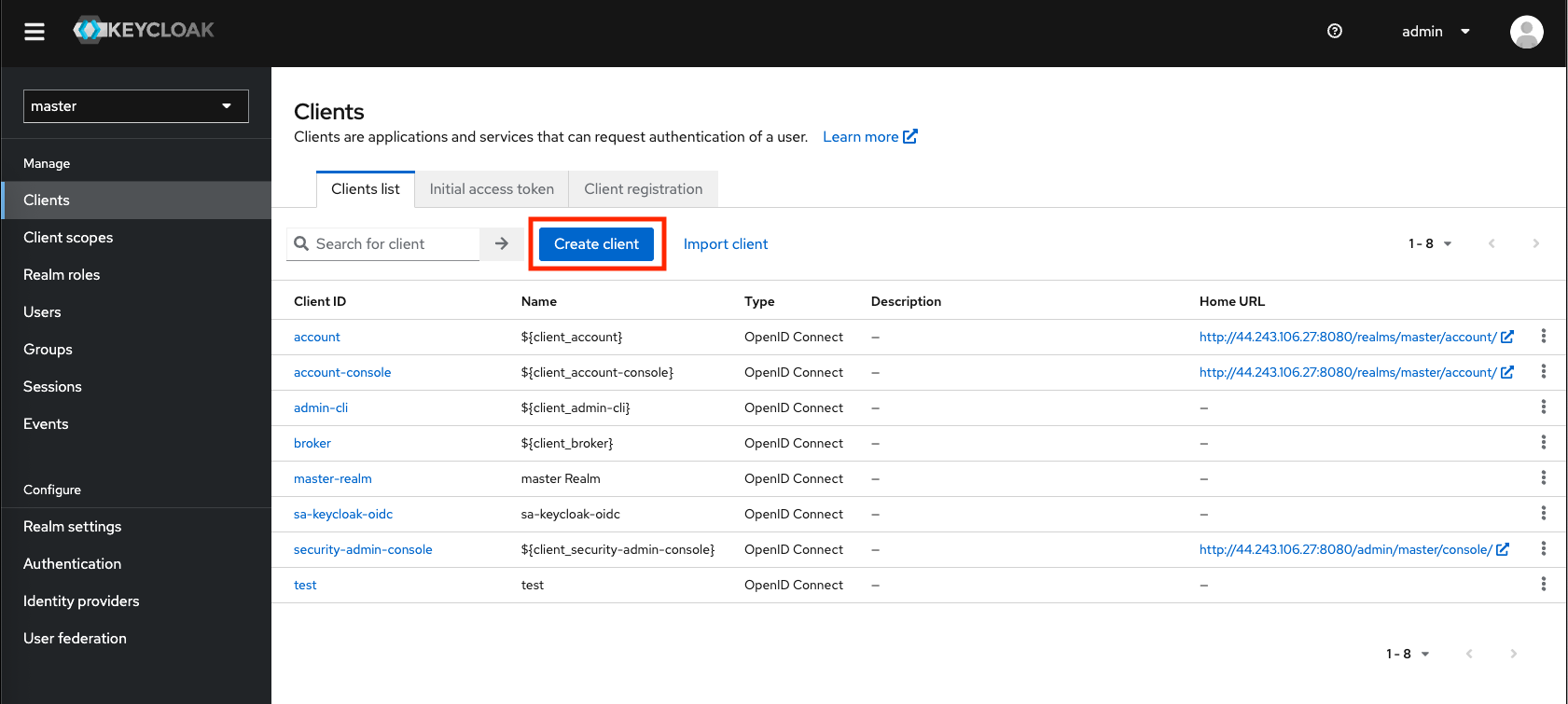

To integrate Keycloak with the Chainguard platform, log in to your Keycloak admin interface. In the left-hand navigation menu, select Create client.

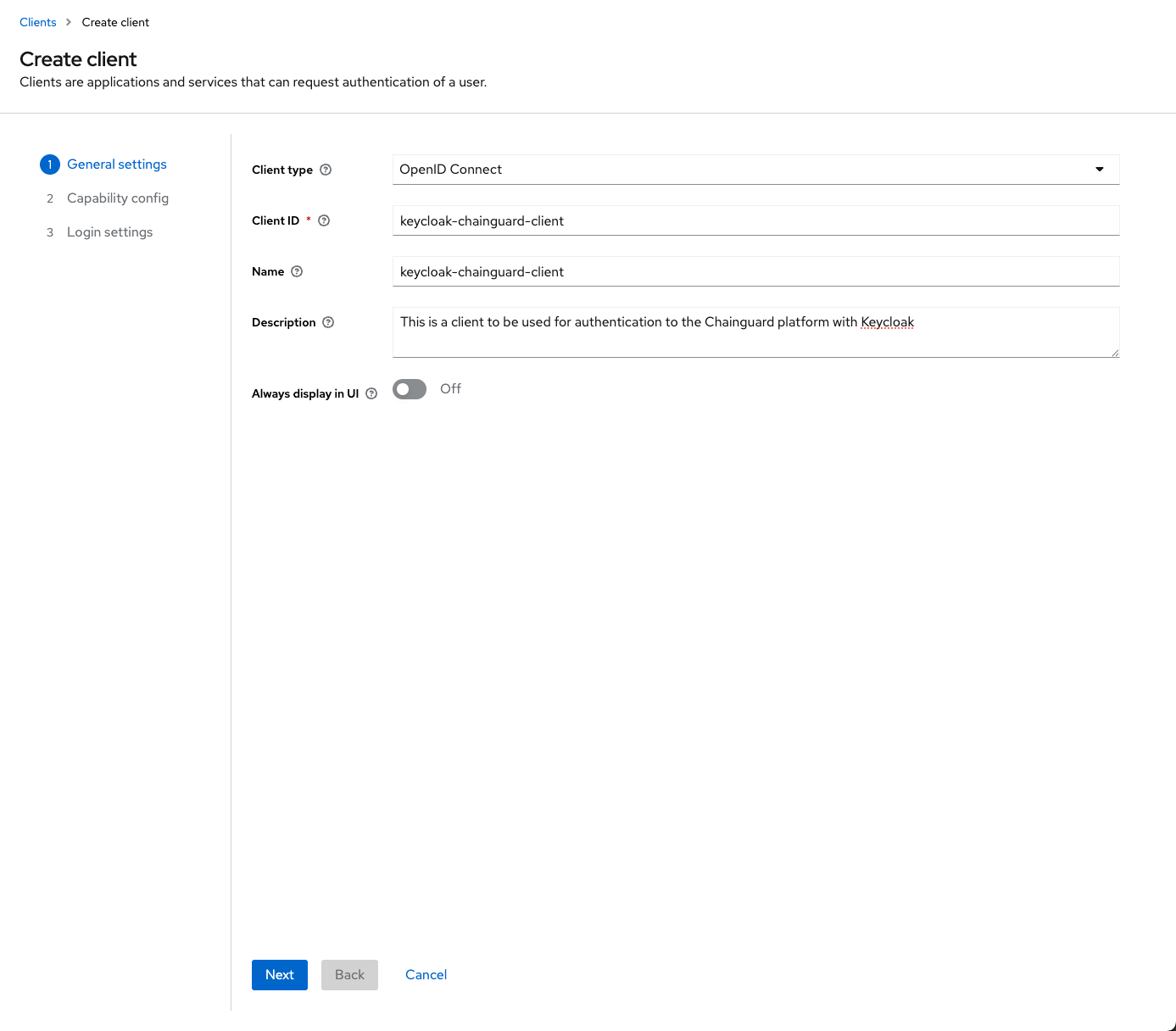

Set the Client Type to OIDC Connect, and set your Client ID. Add a friendly Name and Description if desired. Take note of your Client ID value that you have set. You’ll need this to configure the Chainguard platform to use this Keycloak Client. Click Next.

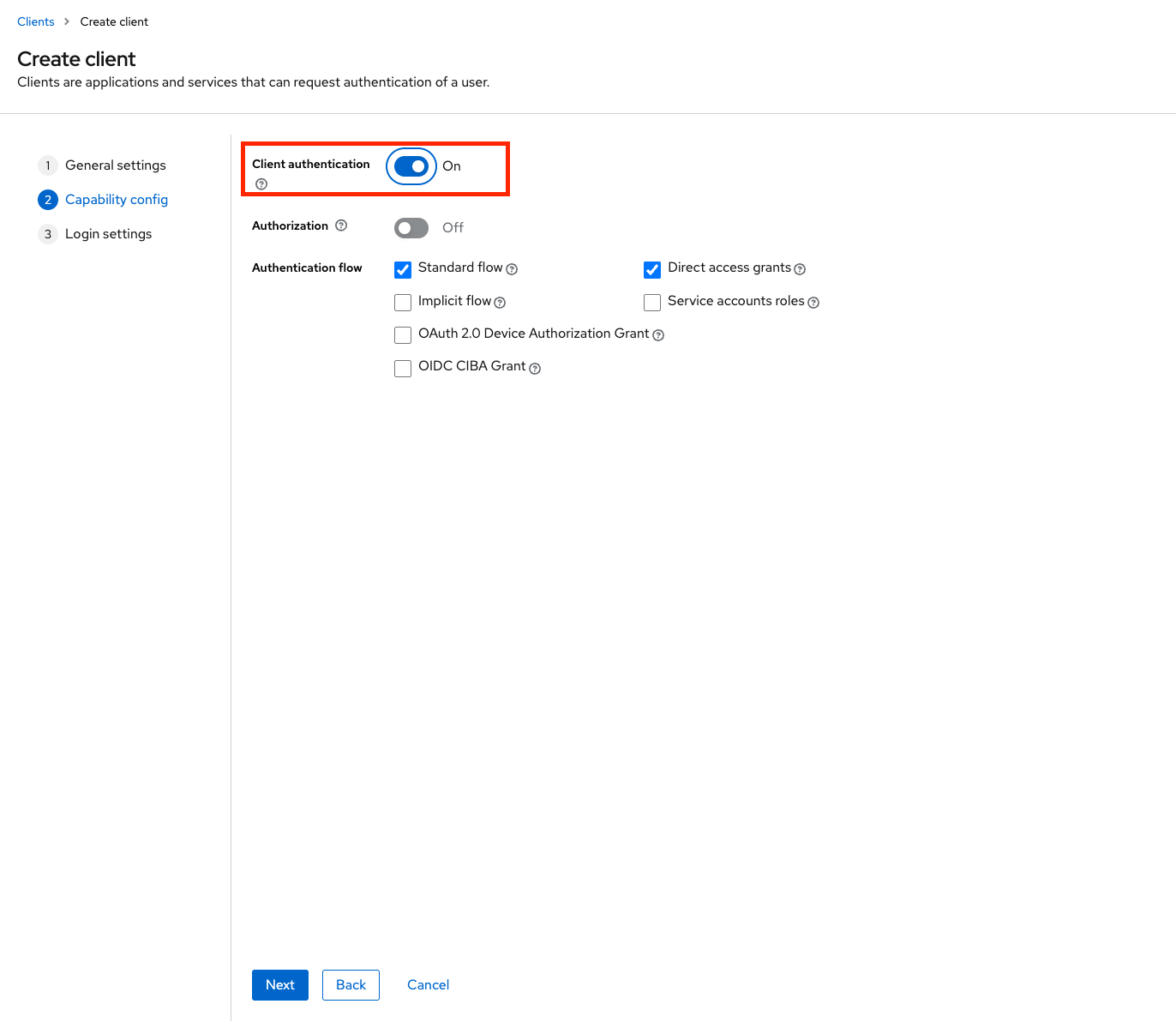

Toggle Client Authentication on and click Next.

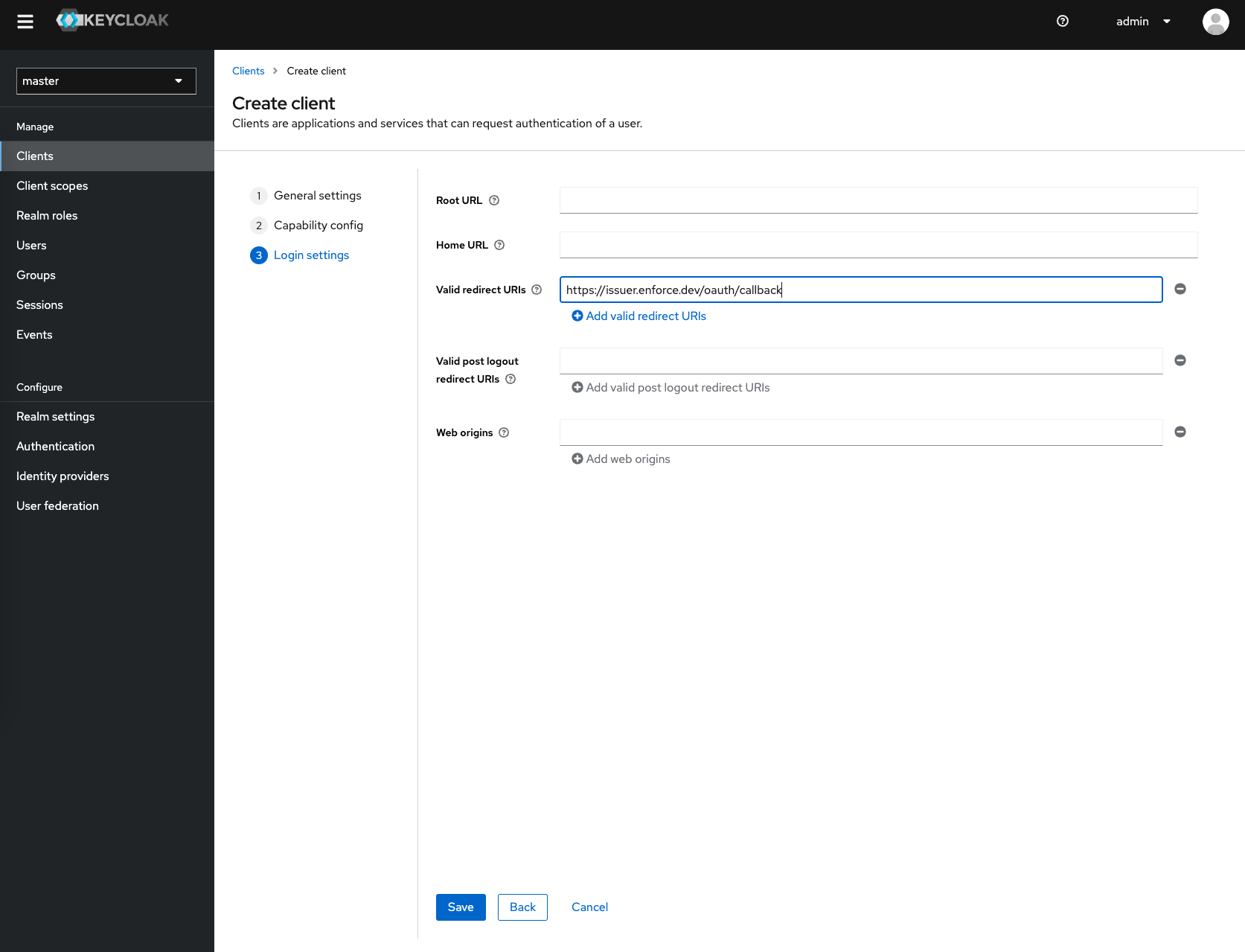

Set the Chainguard platform redirect URI in the Valid redirect URIs field. Click Save to finalize the creation of your Keycloak Client.

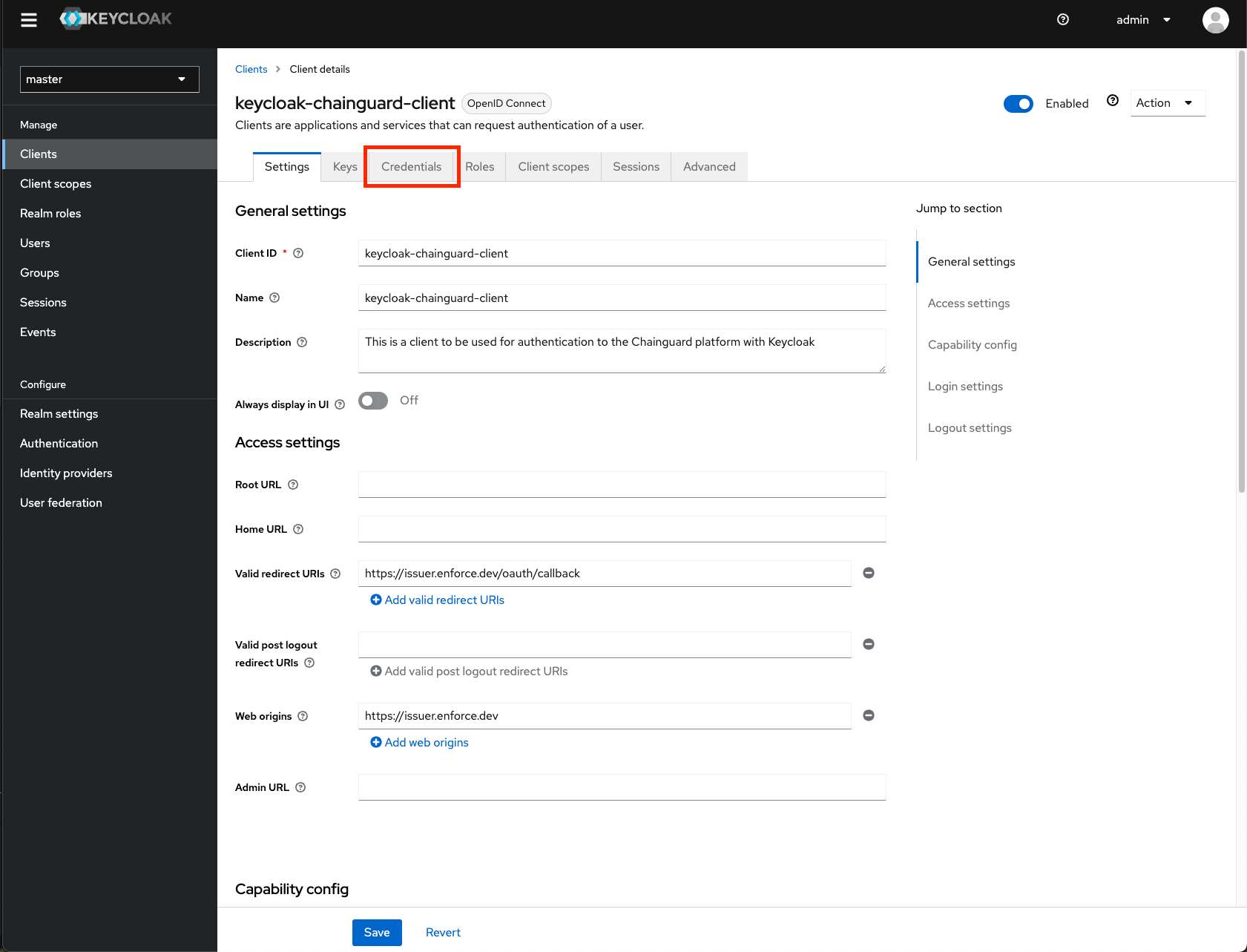

Navigate to the Credentials tab of your newly created client.

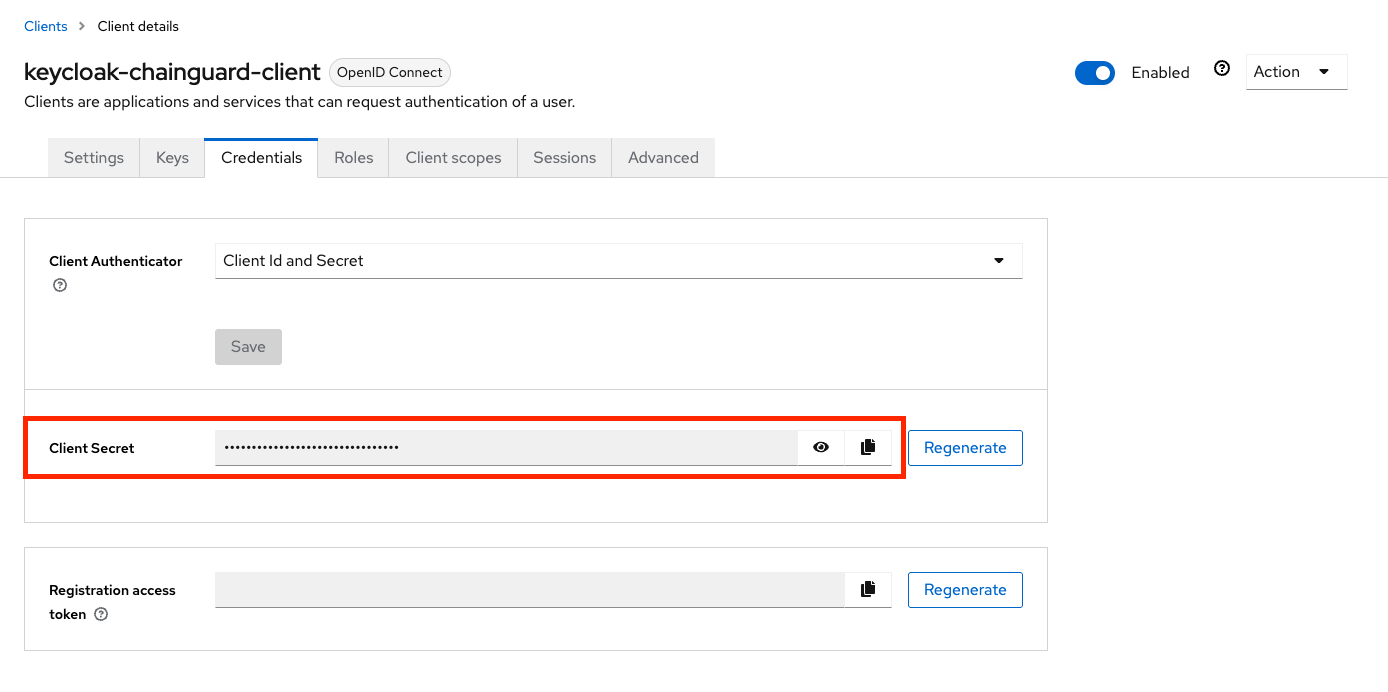

Copy the Client Secret value. You’ll need this to configure the Chainguard platform to use this Keycloak Client.

Configuring Chainguard to use your Keycloak Client

Now that your Keycloak Client is ready, you can create the custom identity provider.

First, log in to Chainguard with chainctl, using an OIDC provider like Google, GitHub, or GitLab to bootstrap your account.

chainctl auth login

Note that this bootstrap account can be used as a backup account (that is, a backup account you can use to log in if you ever lose access to your primary account). However, if you prefer to remove this role-binding after configuring the custom IDP, you may also do so.

To configure Chainguard, make a note of the following details from your Keycloak Client:

• Client ID: This can be found on the Settings tab of the Keycloak Client.
• Client Secret: This can be found on the Credentials tab of the Keycloak Client.
• Issuer: Your Issuer url is defined by the following pattern https://<KEYCLOAK_SERVER_ADDRESS>/realms/<REALM_NAME>

You will also need the UIDP for the Chainguard organization under which you want to install the identity provider. Your selection won’t affect how your users authenticate but will have implications on who has permission to modify the SSO configuration.

You can retrieve a list of all the Chainguard organizations you belong to — along with their UIDPs — with the following command.

chainctl iam organizations ls -o table

                         	ID                         	|  	  NAME    |	DESCRIPTION
--------------------------------------------------------+-------------+---------------------
  59156e77fb23e1e5ebcb1bd9c5edae471dd85c43              | sample_org  |
  . . .                                                 | . . .       |

Note down the ID value for your chosen organization.

With this information in hand, create a new identity provider with the following commands.

export NAME=keycloak-idp
export CLIENT_ID=<your application/client id here>
export CLIENT_SECRET=<your client secret here>
export ORG=<your organization UIDP here>
export ISSUER="https://<KEYCLOAK_SERVER_ADDRESS>/realms/<REALM_NAME>"
chainctl iam identity-provider create \
  --configuration-type=OIDC \
  --oidc-client-id=${CLIENT_ID} \
  --oidc-client-secret=${CLIENT_SECRET} \
  --oidc-issuer=${ISSUER} \
  --oidc-additional-scopes=email \
  --oidc-additional-scopes=profile \
  --parent=${ORG} \
  --default-role=viewer \
  --name=${NAME}

Note the --default-role option. This defines the default role granted to users registering with this identity provider. This example specifies the viewer role, but depending on your needs you might choose editor or owner. If you don’t include this option, you’ll be prompted to specify the role interactively. For more information, refer to the IAM and Security section of our Introduction to Custom Identity Providers in Chainguard tutorial.

You can refer to our Generic Integration Guide in our Introduction to Custom Identity Providers article for more information about the chainctl iam identity-provider create command and its required options.

To log in to the Chainguard Console with the new identity provider you just created, navigate to console.chainguard.dev and click Use Your Identity Provider. Next, click Use Your Organization Name and enter the name of the organization associated with the new identity provider. Finally, click the Login with Provider button. This will open up a new window with the Okta login flow, allowing you to complete the login process through there.

You can also use the custom identity provider to log in through chainctl. To do this, run the chainctl auth login command and add the --identity-provider option followed by the identity provider’s ID value:

chainctl auth login --identity-provider <IDP-ID>

The ID value appears in the ID column of the table returned by the chainctl iam identity-provider create command you ran previously. You can also retrieve this table at any time by running chainctl iam identity-provider ls -o table when logged in.
