How to Set Up Pull Through from Chainguard's Registry to Nexus

Organizations can use Chainguard Containers along with third-party software repositories in order to integrate with current workflows as the single source of truth for software artifacts. In this situation, you can set up a proxy repository to function as a mirror of Chainguard’s registry. This mirror can then serve as a pull through cache for your Chainguard Containers.

This tutorial outlines how to set up a repository with Sonatype Nexus. Specifically, it will walk you through how to set up one repository you can use as a pull through cache for Chainguard’s public Starter containers or for Production containers originating from a private Chainguard repository.

Prerequisites

In order to complete this tutorial, you will need the following:

• Administrative privileges over a Nexus instance. If you’re interested in testing out this configuration, you can either download a trial from Sonatype’s website or run it as a Docker container.

Note: If you use the Docker solution, you will need to add an extra port for the repository to the docker run command. For example, if you run the repository on port 5051, you would a command like docker run -d -p 8081:8081 -p 5051:5051 --name nexus sonatype/nexus3 instead of the example given in the linked GitHub overview.

• Privileges to create a pull token on a Chainguard registry. (For private Chainguard repository access)
• A spare port on the Nexus server to serve the repository (Nexus limits you to 20 ports). Or an alternative solution — such as a reverse proxy — which is beyond the scope of this guide.

Setting up Nexus as a pull through for Starter containers

Starter container images are free to use, publicly available, and always represent versions tagged as :latest.

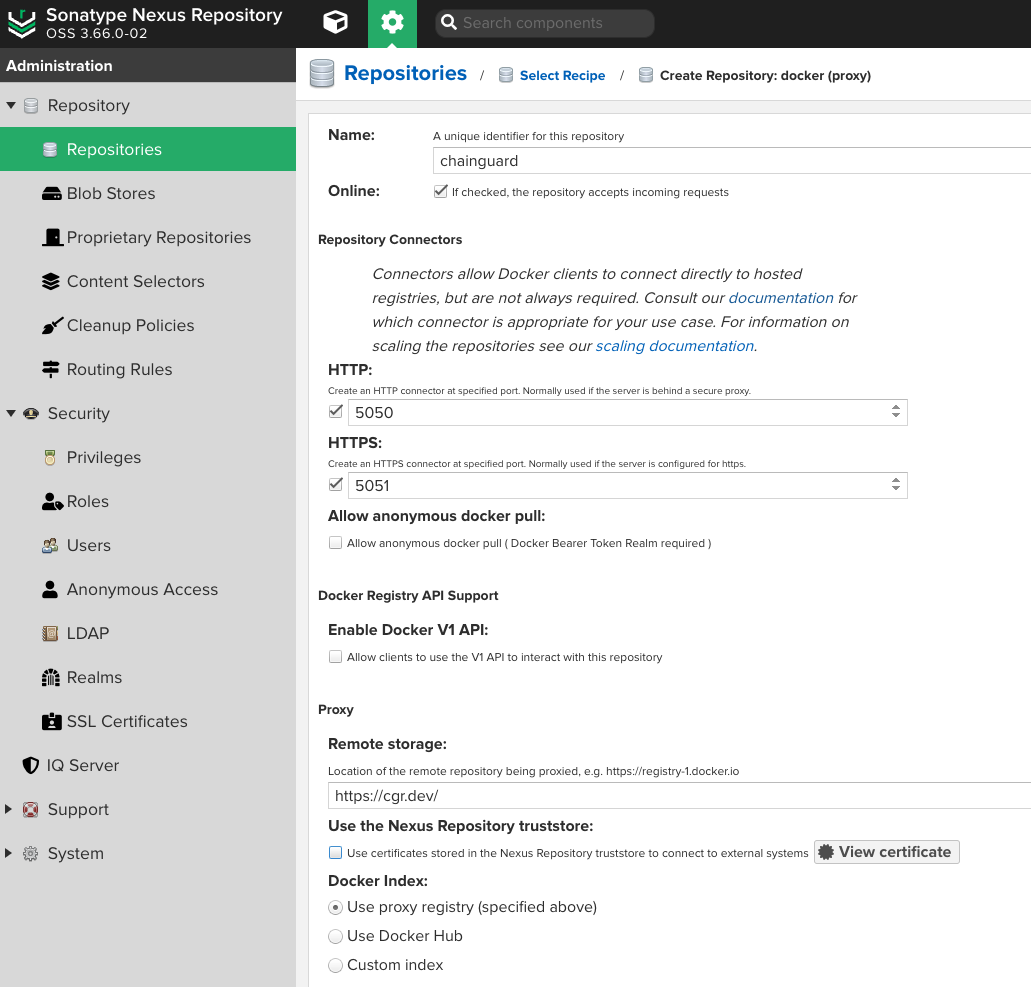

To set up a remote repository in Nexus from which you can pull Starter containers, log in to Nexus with an admin account. Once there, click on the Administration mode cog in the top bar, click Repository in the left-hand navigation menu, and then select Repositories. On the Repositories page, click the Create Repository button and select the docker (proxy) Recipe.

Following that, you can enter the following details for your new remote repository:

• Name — This is used to refer to your repository. You can choose whatever name you like here, but this guide’s examples will use the name chainguard.
• Remote storage — This must be set to https://cgr.dev/.
• HTTP[S] port — Choose an HTTP or HTTPS port as appropriate for your setup.

Following that, click the Create repository button at the bottom of the page. If everything worked as expected, you’ll be taken back to the repository list and should now see an extra repository with your chosen name, with type “proxy”.

Your Nexus URL is the hostname of the Nexus server AND the port number you chose; for example, myrepo.local:5051. If your Nexus server is running from a Docker container, your Nexus URL would be something like localhost:5051.

Testing pull through of a Starter container

If your setup requires authentication, log in with a valid Nexus username and password:

docker login -u<user> <Nexus URL>

After running this command, you’ll be prompted to enter a password.

After running the docker login command, you will be able to pull a Starter container image through Nexus. The following example pulls the wolfi-base container image:

docker pull <Nexus URL>/chainguard/wolfi-base

Be sure the docker pull command contains the correct Nexus URL for your repository.

Setting up Nexus as a pull through for Production containers

Production Chainguard Containers are enterprise-ready images that come with patch SLAs and features such as Federal Information Processing Standard (FIPS) readiness. The process for setting up an Nexus repository that you can use as a pull through cache for Production images is similar to the one outlined previously for Starter containers, but with a few extra steps.

To get started, you will need to create a pull token for your organization’s registry. Pull tokens are longer-lived tokens that can be used to pull containers from other environments that don’t support OIDC, such as some CI environments, Kubernetes clusters, or with registry mirroring tools like Nexus.

Follow the instructions in the link above to create a pull token and take note of the values for username and password as you’ll need this to configure a repository for pulling through Production container images.

You can edit the existing repository and all your users will have access to the private images. Alternatively, you could create a new chainguard-private repository exactly as before but with restricted access, though restricting access to repositories in Nexus is beyond the scope of this guide.

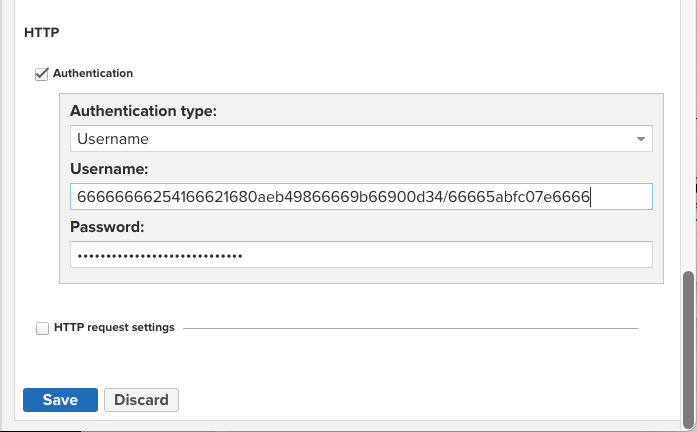

At the bottom of the configuration screen there will be an HTTP section. Check the Authentication box and use the “Username” Authentication type.

Enter the username and password from the pull token in the respective fields.

Click the Save button to apply the changes.

Testing pull through of a Production container image:

If your setup requires authentication, log in with a valid Nexus username and password:

docker login -u<user> <Nexus URL>

After running this command, you’ll be prompted to enter a password.

After running the docker login command, you will be able to pull a Production containers through Nexus. If your organization has access to it, the following example will pull the chainguard-base cotnainer image:

docker pull <Nexus URL>/<company domain>/chainguard-base

Be sure the docker pull command you run includes the name of your organization’s registry.

Debugging pull through from Chainguard’s registry to Nexus

If you run into issues when trying to pull Containers from Chainguard’s Registry to Nexus, please ensure the following requirements are met:

• Ensure that all Containers network requirements are met.
• When configuring a remote Nexus repository, ensure that the URL field is set to https://cgr.dev/. This field must not contain additional components.
• You can troubleshoot by running docker login from another node (using the Nexus pull token credentials) and try pulling a container image from cgr.dev/chainguard/<image name> or cgr.dev/<example.com>/<image name>, using your own organization’s registry name in place of <example.com>.
• It could be that your Nexus repository was misconfigured. In this case, create and configure a new Nexus repository to test with.

Learn more

If you haven’t already done so, you may find it useful to review our Registry Overview to learn more about Chainguard’s registry. You can also learn more about Chainguard Containers by checking out our Containers documentation. If you’d like to learn more about Sonatype Nexus, we encourage you to refer to the official Nexus documentation.
